High power light die cast aluminium 80w 90w 100w 120w 150w 200w 240w 300w led street lights

Model Number : EK-LD15
Nombre del producto: farola LED
Recommend the Watts: : 50w 60w 80w 100w 150w 200w
Waterproof Index : IP66
Índice a prueba de terremotos: IK08 IK09
Temperatura de trabajo (℃): -20-60
Surface Color : RAL9007(available on request)
Contain Accessories : Complete finished street lights

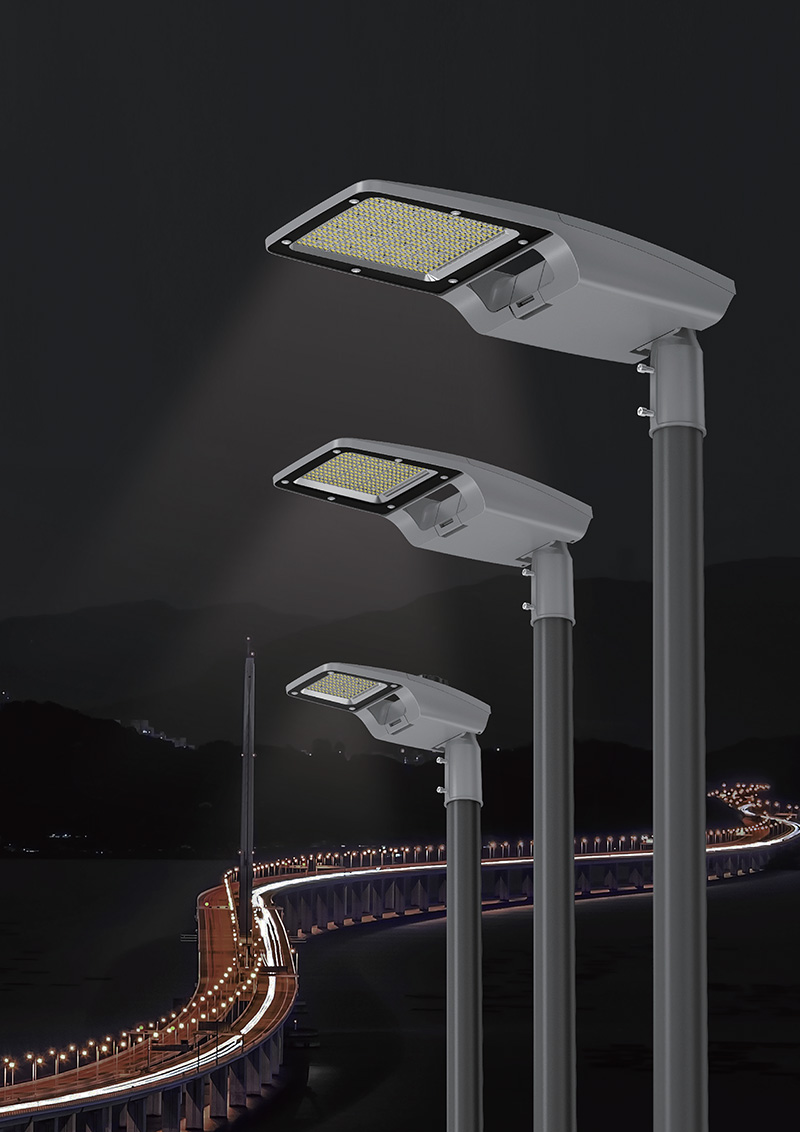

Product Effect Pictures

Características del producto

  1. Smooth appearance and line design

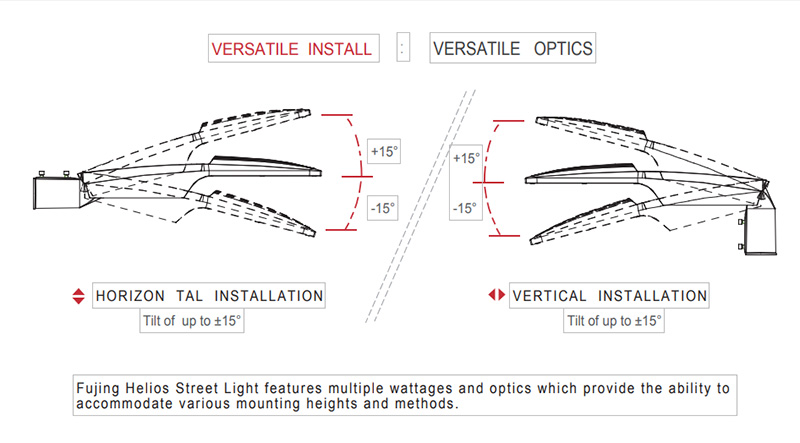

  2. can be installed horizontally and vertically,and the adjustable angle is ± 15 °
  3. The protection grade is IP66 and IK08
  4. Tool-less opening of driver box, ease ofmaintenance
  5. ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation
  6. High strength tempered glass lampshade withstronger light transmission performance
  7. The hollow design is adopted between the light source and the drive room to improve theair flow rate and heat dissipation capacity

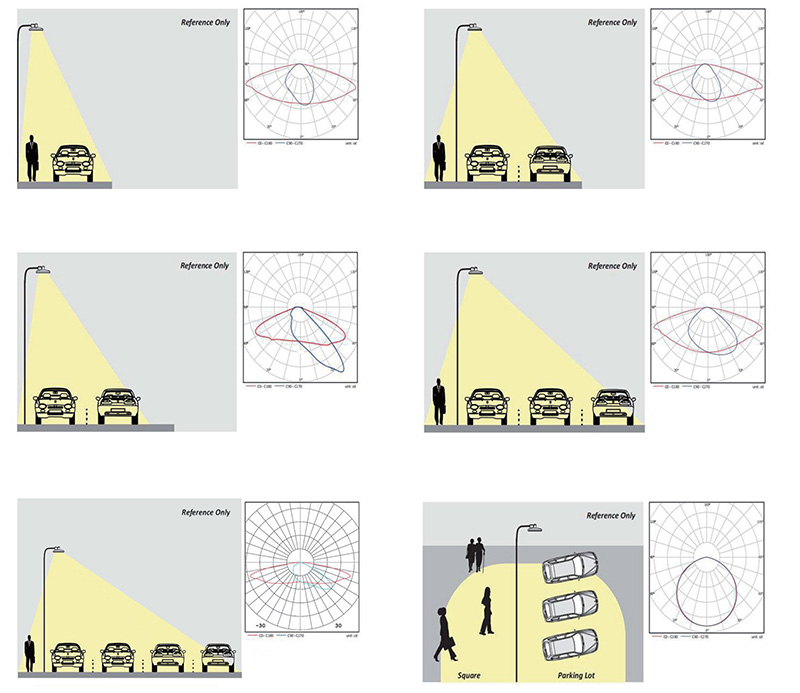

  8. Type Ⅰ/Ⅱ/Ⅲ/Ⅳ/Ⅴlight distribution can meetthe different requirements of road lighting.
  9. Strobo-free stable optical output, power factor0.95 Maintain the stability of the power grid

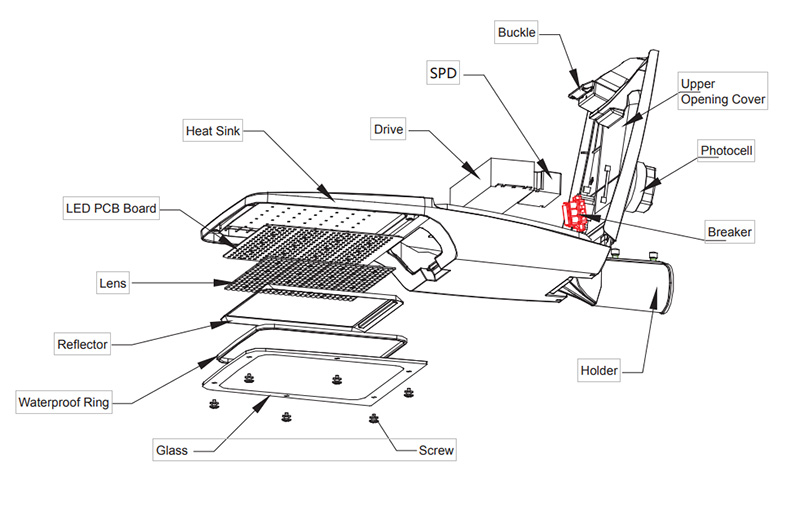

Product Details Picture

Especificación y dimensión

 Product Datasheet
 Artículo No.EK-LD15-20WEK-LD15-30WEK-LD15-50WEK-LD15-60WEK-LD15-80WEK-LD15-100WEK-LD15-120WEK-LD15-150W
 Fuerza20W30W50W60W80W100W120W150W
Lumen Efficiency130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w
 Lumen2600lm3900lm6500lm7800lm10400lm13000lm15600lm19500lm
 Product Size（mm）498×180×115498×180×115498×180×115629×250×125629×250×125629×250×125629×250×125698×280×115
 Electrical Data
Working VoltageAC100-265V｜50/60Hz
 LEDLumileds / Epistar
 CCT3000K, 4000K, 5000K, 6000K
 IRCRa>70 (Default) / Ra>80
 DriverMeanwell/Philips/Inventronics/OSRAM and so on
 THD<15%
 Power Factor(PF)PF＞0.95
 General Data
 IP RatingIP66
 IK RatingIK08
 Holder50mm/60mm(Default)
Cuerpo materialHigh pressure die-cast aluminum
Housing ColorRAL9007(available on request)
Cover MaterialUV-resistant Polycarbonate
Ambiente de trabajo-20℃～+50℃，10%～90%RH
Lifespan L70 at 25℃＞50,000hrs
Mounting TypeSide entry or Vertical pole mounted ±15°
Dimmable1-10V Dimming /Timer Dimming/Dali Dimming
Protection ClassClass Ⅰ(Defauit)/Class Ⅱ
StandardsCE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Available on requestSolar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Reasonable toleranceWatt: ±10%，CCT: ±500K, Lumen efficiency: ±5%
